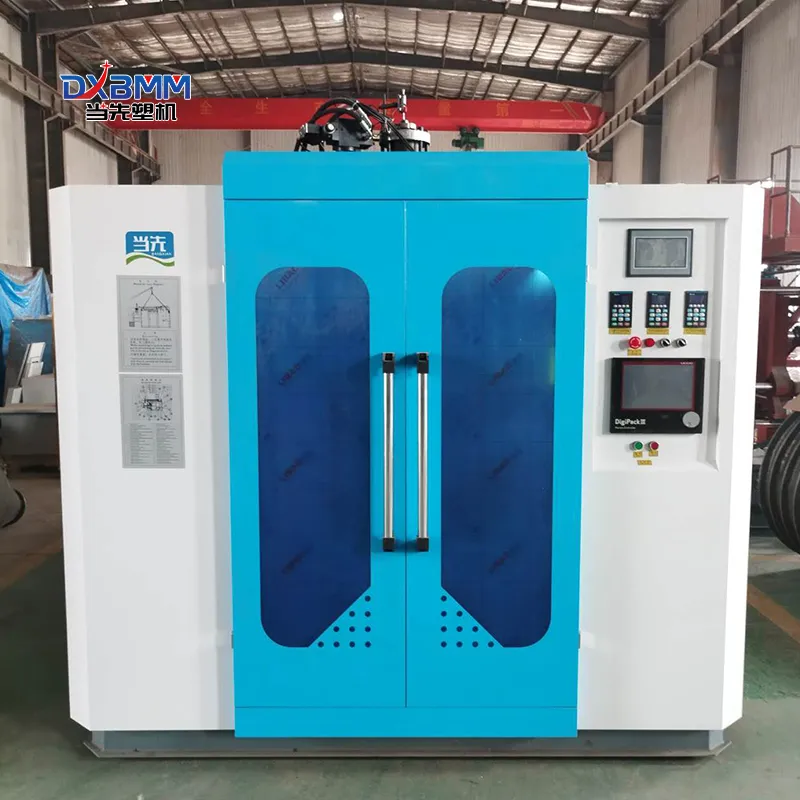

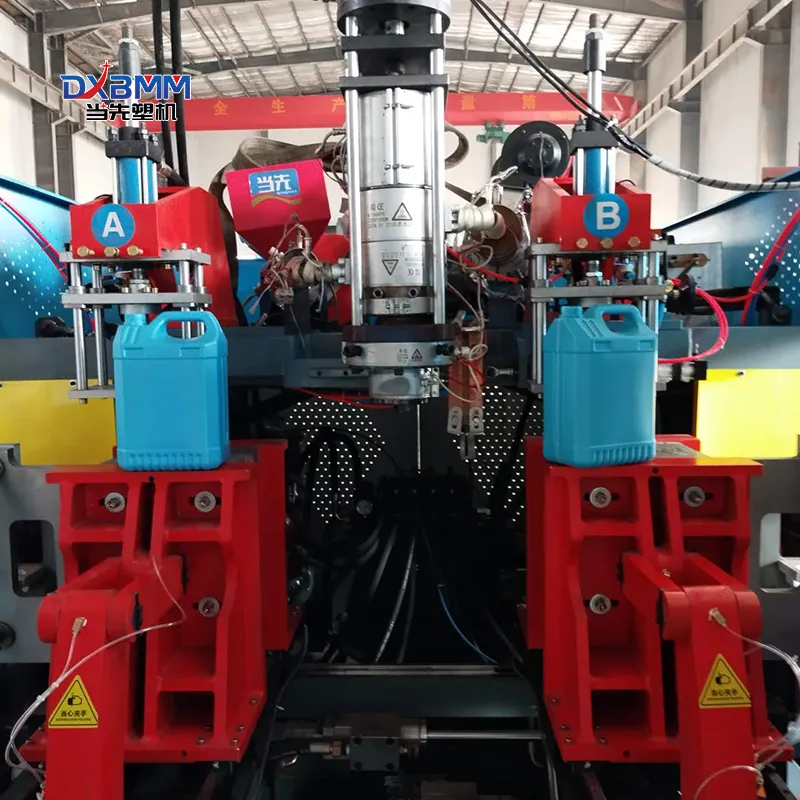

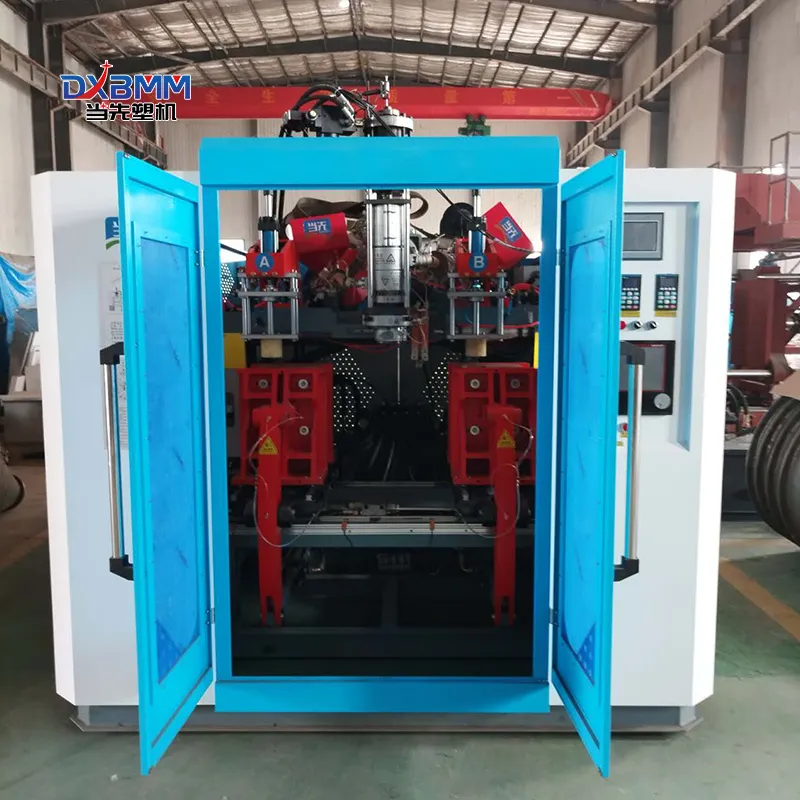

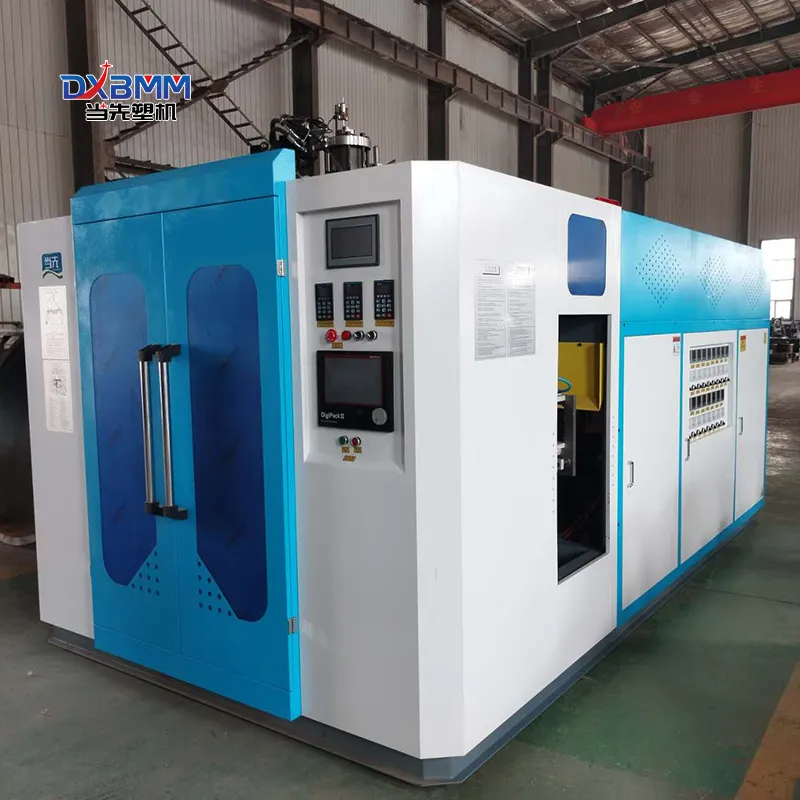

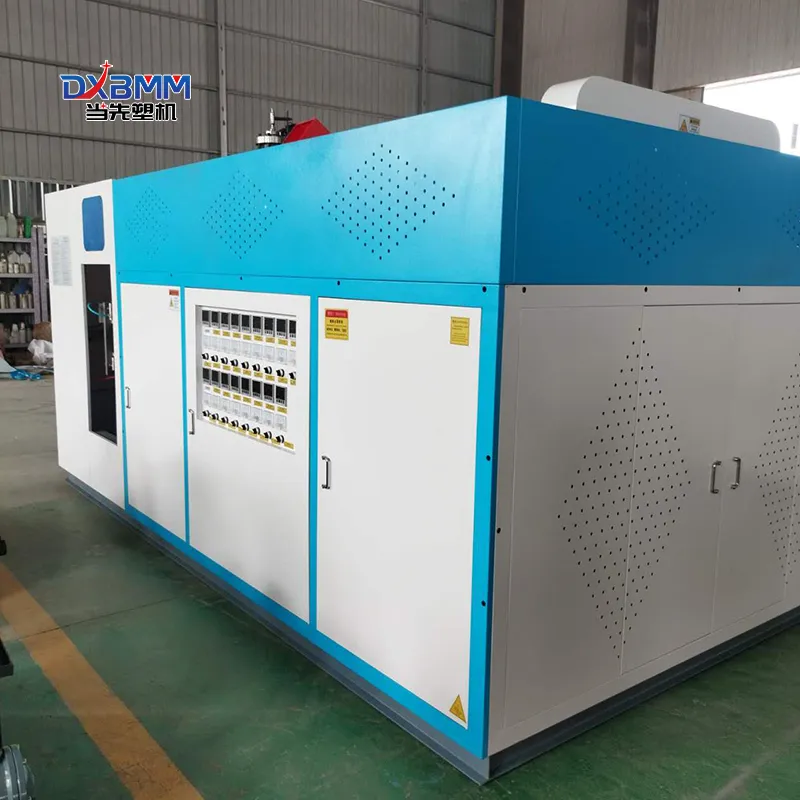

Type 80B-A Automatic Bottle blowing machine
Type 80B-A Automatic Bottle blowing machine
| 80抱臂式全自动吹瓶机 80 arm type fully automatic bottle blowing machine | |||
| Number | Project | Parameter | Notes |
| 1 | 制品容量Product capacity | 5-10L | |
| 2 | 每模制品数量 | 2 modulus（模） | |
| Quantity of each molded product | |||
| 3 | 合模次数 | 每小时60-300次 | |
| Number of mold closures | 60-300 times/hour | ||
| 4 | 模板尺寸 | 440*370*30mm | |
| Template size | |||
| 5 | 最小容模厚度 | 200mm | |
| Minimum mold thickness | |||
| 6 | 模板最大开距 | 500mm | |
| Maximum template spacing | |||
| 7 | 最大锁模力 | 5KN | |
| Maximum locking force | |||
| 8 | 主机螺杆直径 | Ф80 | 38CrMoAl |
| Main screw diameter | |||
| 9 | 螺杆长径比 | 25/1 | |
| Screw length to diameter ratio | |||
| 10 | 最大塑化能力 | 80kg | |
| Maximum plasticizing capacity | |||
| 11 | 主电机功率 | 18.5kw | 变频 |
| Main motor power | frequency conversion | ||
| 12 | 加温功率 | 25kw | |
| Heating power | |||
| 13 | 吹气方式 | 上吹气 | |
| Blowing method | Blow air upwards | ||
| 14 | 操作系统 | 触摸屏电脑PLC | 中达优控S700A |
| Operating system | Touch screen computer PLC | Zhongda Youkong S700A | |
| 15 | 机组总质量 | 5T | |
| Total mass of the unit | |||
| 16 | 外形尺寸（长宽高） | 4200mm*2100mm*2200mm | |
| External dimensions (length, width, height) | |||
| 17 | 耗气量 | 0.5m3/min | |
| Gas consumption | |||
| 18 | 切料方式 | 热切料 | |
| Cutting method | Hot cut material | ||
| 19 | 电源 | 380v(三相四线制) | |
| source | Three phase four wire system | ||
| 20 | 液压电机 | 7.5kw | |
| Hydraulic motor | |||
| 21 | 模头中心距 | ||
| Center to center distance of mold head | |||
| 22 | 整机加温段 | 8段 | |
| Whole machine heating section | 8 segments | ||
| 23 | 适用材料 | PE/PP | |
| Applicable materials | |||
| 24 | 锁模方式 | 中心直顶式 | |
| Locking mode | Center straight top type | ||
| 25 | 吹气压力 | 0.3-0.6MPA | |
| blowing pressure | |||
| 26 | 机筒、螺杆材质 | 舟山38CoMoAl | 渗氮处理 |
| Material of machine barrel and screw | Zhoushan | Nitriding treatment | |
| 27 | 变速箱 | 173（硬齿面） | 江苏惠鑫 |
| Transmission | Hard tooth surface | Jiangsu Huixin | |
| 28 | 气动元件 | 白石气动 | |
| Pneumatic components | Baishi Pneumatic | ||
| 29 | 电磁阀 | BWIN | |
| Solenoid valve | |||
| 30 | 交流接触器电器 | 浙江正泰 | |
| AC contactor electrical appliances | Zhejiang Zhengtai | ||
| 31 | 接近开关 | 奥通米克 | |
| Proximity switch | Otomic | ||
| 32 | 电机 | 台州格欣 | |
| Electrical machinery | Taizhou Gexin | ||
| 33 | 变频器 | 青岛华皓 | |
| inverter | Qingdao Huahao | ||
| 34 | 模头(中心距250)压板厚50 Die head | 张家港Zhangjiagang | 中心进料分流锁 Center feed diversion lock |
| 35 | 风罩 | 青岛邦凌Qingdao Bangling | |
| Wind hood | |||
| 适合医药、玩具、工具盒、日化、汽车、民用桶、化工桶等领域中空塑料制品。原料PP PE | |||
| Suitable for hollow plastic products in fields such as medicine, toys, tool boxes, daily chemicals, automobiles, civilian buckets, and chemical buckets. Raw material PP PE | |||
机器主要采用部件
1.工控电脑PLC：中达优控S700A
2.模头：张家港中心进料带分流锁
3.螺杆：舟山劲威合金螺杆
4.减速机：江苏硬齿面惠鑫普
5.油泵：Panke
溢流阀：上海导德
换向阀：上海导德
6.气动系统：白石气动
7.电控系统：正泰电器
The machine mainly uses components
1. Industrial computer PLC: Zhongda Youkong S700A
2. Mold head: Zhangjiagang central feeding belt with diversion lock
3. Screw: Zhoushan Jinwei alloy screw
4. Reducer: Jiangsu Hardened Gear Huixinpu
5. Oil pump: Panke
Overflow valve: Shanghai Daode
Directional valve: Shanghai Daode
6. Pneumatic system: Baishi Pneumatic
7. Electric control system: Chint Electric Appliances
